€ 2937.00 VAT excl.

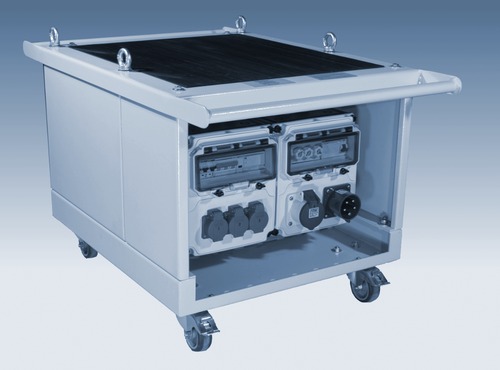

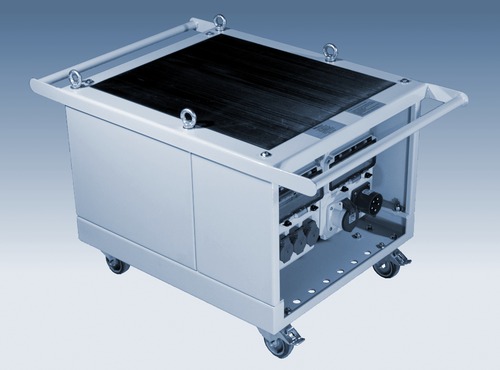

Movable isolating transformer 400 V / 230 V, IP54, 10 kVA

Mobile/movable isolating transformer for use on building sites, in tank construction, in the workshop among others. Robust metal housing, IP54, on castors, with transport lugs.
Input 3 x 400 V with 16 A-CEE plug. 3 outputs 230 V with 16 A Schuko socket (continuous nominal power 14.5 A each). Secondary automatic circuit breaker for each socket.

Type-no.	210 493 010
Type	Isolating transformer
Intended use	Safe operation of electrical tools on buildings sites
Voltage	Primary 3 x 400 V  /  Secondary 3 x 230 V
Power	10 kVA    (10000 VA)
Input	Built-in CEE plug (16 A)
Output	3 x Schuko socket outlet (16 A)
Protection class	IP 54
Size / weight	650 x 400 x 630 mm  /  122 kg.
Approvals
Origin	Made in Germany
Remarks	Other designs and powers on request: Inquiry formular
Standard delivery time	1-2 days
Order	You can order this product online. Price € 2937.00 VAT excl.
Print-version (PDF) Subject to alterations/ As of  Apr 22 2024 Similar transformers: Movable isolating transformers 230 V, 400 V  (Series overview)
